In the past, diagnosing a plumbing issue was a game of educated guessing. If a pipe was leaking behind a wall or a drain was repeatedly clogging underground, the only way to find the root cause was to start smashing through drywall or digging up the concrete floor.
Today, that destructive, costly approach is entirely obsolete.
Professional plumbing is now driven by diagnostic technology and rigorous testing protocols. Whether you are buying a new property, commissioning a newly built commercial facility, or tracking down a recurring issue, here is how modern plumbing inspection and testing guarantees the integrity of your infrastructure.
1. The Eyes Underground: CCTV Video Inspections
The most powerful tool in a modern plumber’s arsenal is the digital pipeline inspection camera. Instead of digging blindly, technicians feed a high-resolution, waterproof camera directly into your sewer or supply lines.

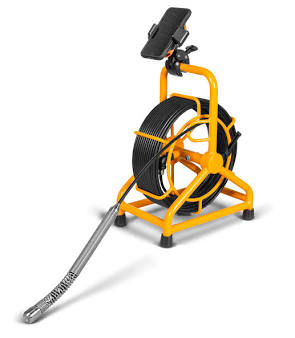

Digital inspection cameras eliminate destructive exploratory digging.. Source: Fiberscope.net
- Pinpoint Accuracy: The camera head transmits a live video feed to a monitor, allowing technicians to physically see the inside of your pipes. We can spot invasive tree roots, scale buildup, collapsed pipe sections, or bellied lines instantly.
- Built-in Sondes: Advanced camera heads contain a radio transmitter (a sonde). When the camera finds a blockage, the technician walks above ground with a locator wand to mark the exact spot and depth of the issue. If digging is required, we know exactly where to make a single, precise cut.
2. The Stress Test: Hydrostatic Pressure Testing
A visual inspection tells you how a pipe looks, but a pressure test tells you how a pipe performs. Hydrostatic testing is the definitive way to prove that a newly installed plumbing system is entirely leak-free before the walls are closed up.
During this test, the entire plumbing system is capped off, filled with water, and pressurized well above normal operating levels using a specialized pump and gauge.

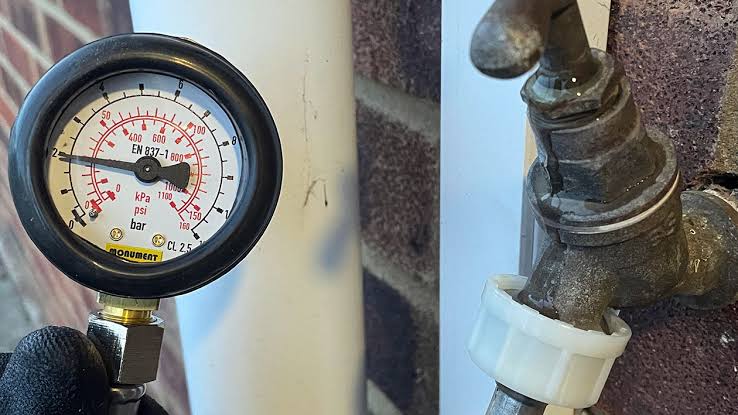

Hydrostatic testing pressurizes the system to reveal microscopic leaks.. Source: North East Plumbing
- The Bleed Down: Once pressurized, the system is monitored for a specific duration. If the pressure drops even a fraction of a bar, it means water is escaping somewhere in the closed loop.
- Material Expansion: Different pipe materials react to pressure differently. PEX expands slightly under pressure, while rigid PVC or copper does not. A professional tester accounts for this material expansion to distinguish between a natural pressure drop and an actual leak.
Try this interactive tool to visualize how different pipe materials and system sizes affect the acceptable parameters during a pressure test:
https://3nah1gomxxfdp9jeygkwbab6x05t04ty2aiuvuyx3qwus3x0vu-h917864466.scf.usercontent.goog/gemini-code-immersive/shim.html?origin=https%3A%2F%2Fgemini.google.com&cache=1
Was this visual helpful?YesNo
Key insight: A successful pressure test is the ultimate sign-off. It guarantees that the joints, valves, and pipes can withstand daily commercial or residential use without failing.
3. Smoke Testing: Catching the Invisible
Not all plumbing leaks involve water. Sewer gas leaks are highly toxic, notoriously difficult to track down, and invisible to the naked eye.
When property owners complain of recurring foul odors, professionals use a smoke test. We pump artificially generated, non-toxic smoke into the drainage system. Because smoke naturally follows the path of least resistance, it will seep out of cracked vent pipes, dried-out P-traps, or failing wax rings, making the invisible gas leak highly visible.
Data-Driven Plumbing
Your plumbing infrastructure is too important to be left to trial and error. Whether you are dealing with a recurring drain issue or need final compliance sign-off for a new build, you need a team that relies on hard data, digital diagnostics, and rigorous testing.
For property owners, facility managers, and developers in Ota and across Ogun State, Olaas Plumbing Enterprises brings state-of-the-art diagnostic technology to every site. We inspect, we test, and we verify—so you never have to guess.
